Sectional Model 2742

Duty Rating: Heavy-Duty
Insulation/R-Value: 19.40
Layers: 3
Warranty: 10-Year
Price: $$$

download brochure

Description

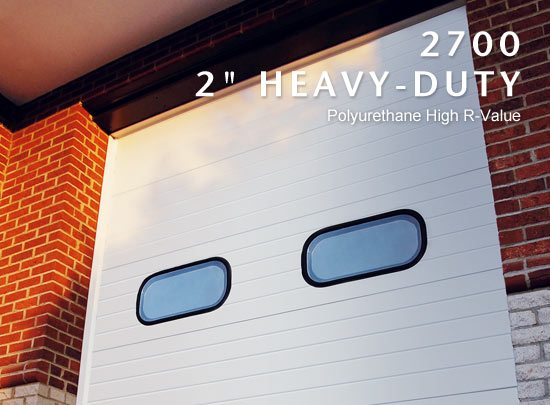

Sectional Model 2742

Amarr’s top-of-the-line high R-Value door is constructed with a thermal break, and uses foamed-in-place polyurethane insulation creating a strong monolithic panel that is energy efficient.

MAXIMUM R-VALUE
Amarr’s polyurethane insulation provides the best R-Values per inch when compared to other common types of sectional door insulation.

ECO-FRIENDLY
Amarr’s polyurethane foam is free of Ozone depleting Chlorofluorocarbons (CFC) while providing maximum insulation to help reduce the negative environmental impact of heating and cooling energy use.

Section Profile

  • Ribbed Stucco

Ribbed Stucco

Available Colors

  • True White
  • Sandtone
  • Commercial Brown
  • Commercial Gray

Construction

  • Steel Insulation Steel

Commercial Steel Triple Layer Construction

Track: All Amarr Doors are available with both
2″ or 3″ track in Standard Lift, High Lift, Vertical Lift,
Low Headroom, and Follow the Roof Pitch. Custom track configurations are also available. For drawings and more information, please visit our downloads website.

Hardware: Amarr hardware includes minimum
14-gauge galvanized steel hinges and 13-gauge galvanized steel track brackets. All rollers have
minimum 10-ball bearings.

Springs: Torsion springs are oil tempered, helical wound and custom computed for each door for a minimum 10,000 cycle life. Optional springs are available up to 100,000 cycle life.

Windows

Commercial Window 24x12 Insulated
24″ x 12″ Insulated
Commercial Window Full View
Full View

24″ x 6″ Insulated

26″ x 13″ Insulated

Perforated Aluminum Full View

Specifications

 2742
R-VALUE 19.40*
STEEL THICKNESS 27/27 ga
PANEL DESIGN Pencil Groove
STEEL EMBOSSMENT Stucco
CONSTRUCTION LAYERS Three
MAX STD WIDTH 32’2″
MAX STD HEIGHT 20’2″
DOOR THICKNESS 2″ (5.1cm)
