Sectional Model 2741

Duty Rating: Medium-Duty
Insulation/R-Value: 14.46
Layers: 3
Warranty: 10-Year
Price: $$

download brochure

Description

Sectional Model 2741

The model 2741 is an energy efficient model is designed to provide maximum value for your budget. The sections are insulated with foamed-in-place polyurethane which creates a strong monolithic panel.

MAXIMUM R-VALUE
Amarr’s polyurethane insulation provides the best R-Values per inch when compared to other common types of sectional door insulation.

ECO-FRIENDLY
Amarr’s polyurethane foam is free of Ozone depleting Chlorofluorocarbons (CFC) while providing maximum insulation to help reduce the negative environmental impact of heating and cooling energy use.

Section Profile

  • Ribbed Stucco

Ribbed Stucco

Construction

  • Steel Insulation Steel

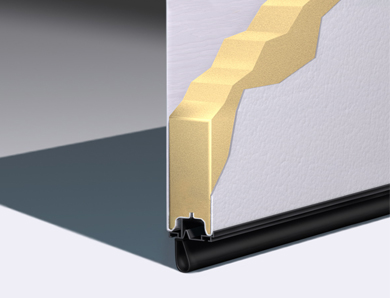

Commercial Steel Triple Layer Construction

Track: All Amarr Doors are available with both
2″ or 3″ track in Standard Lift, High Lift, Vertical Lift,
Low Headroom, and Follow the Roof Pitch. Custom track configurations are also available. For drawings and more information, please visit our downloads website.

Hardware: Amarr hardware includes minimum
14-gauge galvanized steel hinges and 13-gauge galvanized steel track brackets. All rollers have
minimum 10-ball bearings.

Springs: Torsion springs are oil tempered, helical wound and custom computed for each door for a minimum 10,000 cycle life. Optional springs are available up to 100,000 cycle life.

Windows

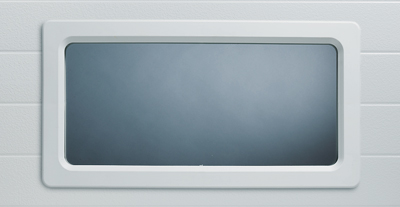

Commercial Window 24x12 Insulated

24″ x 12″ Insulated

24″ x 6″ Insulated

26″ x 13″ Insulated

Available Colors

  • True White
  • Sandtone
  • Commercial Brown
  • Commercial Gray

Specifications

R-VALUE 14.46
STEEL THICKNESS 27/27 Ga.
PANEL DESIGN Pencil Groove
STEEL EMBOSSMENT Stucco
CONSTRUCTION LAYERS Three
MAX STD WIDTH 18’2″
MAX STD HEIGHT 14’1″
DOOR THICKNESS 1 3/8″(3.5cm)
