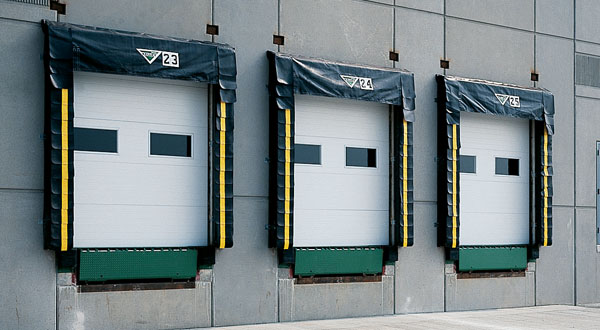

Sectional Steel Model 2732

Sectional Model 2732

Duty Rating: Medium-Duty
Insulation/R-Value: 9.4
Layers: 3
Warranty: 10-Year
Price: $$

download brochure

Description

Sectional Model 2732

Solid steel construction is the basis for the Amarr 2732. Two tough steel skins with CFC-free polystyrene insulation, and a thermal break creates a barrier to keep heat and cold from transferring through the door. The ideal choice for International Energy Conservation Code (IECC)/insulated door projects that are budget sensitive and do not require a 24-gauge exterior.

RAPID INSTALL VERTICAL LIFT

Time is money! Designed for Amarr commercial warehouse and dock doors; saves approximately 20 minutes installation time.

ECO-FRIENDLY

Our polystyrene insulation is free of Ozone depleting Chlorofluorocarbons (CFC) while providing efficient insulation to help reduce the negative environmental impact of heating and cooling energy use.

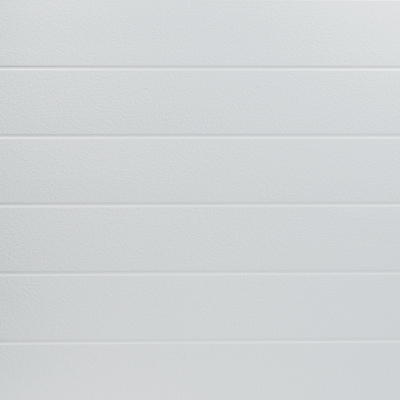

Section Profile

  • Ribbed Stucco

Ribbed Stucco

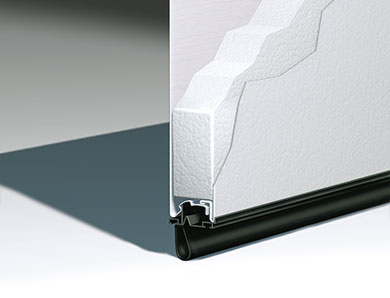

Construction

  • Triple Layer Steel Insulation Steel

Commercial Steel Triple Layer Construction

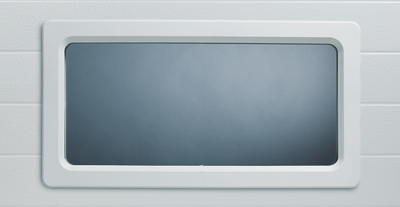

Windows

Commercial Window 24x12 Insulated

24″ x 12″ Insulated

Sectional Model 2731 24 x 6 Double Insulated Acrylic Window

24″ x 6″ Double Insulated Acrylic



Available Colors

  • True White
  • Commercial Brown
  • Sandtone
  • Commercial Gray

Specifications

R-VALUE 9.4
STEEL THICKNESS 27/27 Ga.
PANEL DESIGN Pencil Groove
STEEL EMBOSSMENT Stucco
CONSTRUCTION LAYERS Three
MAX STD WIDTH 24’2″
MAX STD HEIGHT 26’1″
DOOR THICKNESS 2″(5.1cm)
