Sectional Model 2402/2412/2422

Duty Rating: Heavy-Duty
Insulation/R-Value: N/A Or 7.0
Layers: 1, 2, or 3
Warranty: 10-Year
Price: $$

download brochure

Description

Sectional Model 2402/2412/2422

The Model 2402 is the workhorse of the industry. The deep ribbed 24 gauge steel sections can be factory- or field-modified with CFC-free polystyrene insulation that features a nylon or steel backer to fit the needed application.

INDUSTRY STANDARD
The 24-Gauge deep ribbed single layer sectional steel door with multiple insulation options is the most common sectional door in the industry.

PRODUCT FLEXIBILITY
The Model 2400 is available non-insulated, insulated, or insulated with a steel backer to fit most project requirements.

Section Profile

  • Ribbed Smooth

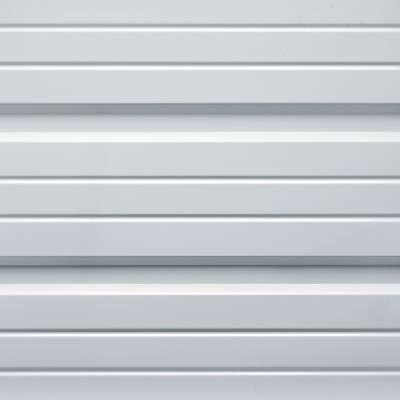

Commercial Steel Ribbed Smooth

Available Colors

  • Commercial White
  • Commercial Brown
  • Black
  • Commercial Gray

Construction

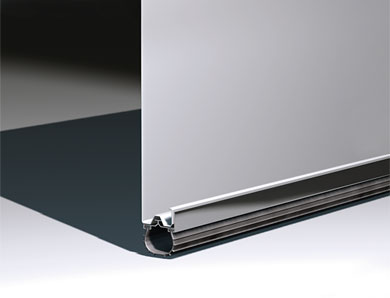

Commercial Steel Single Layer Construction
Model 2402 –
Single Layer Steel

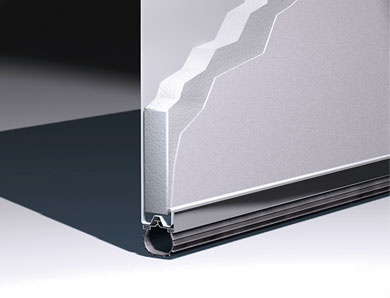

Commercial Steel Double Layer Construction
Model 2412 –

Double Layer Steel Insulation
Commercial Steel Triple Layer Construction
Model 2422 –
Triple Layer Steel Insulation Steel backer

Windows

Commercial Window 24x12 Insulated

24″ x 12″ Insulated

Commercial Window Full View

Full View

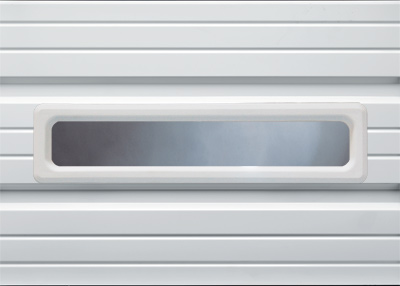

Commercial Window Panel

24″ x 6″

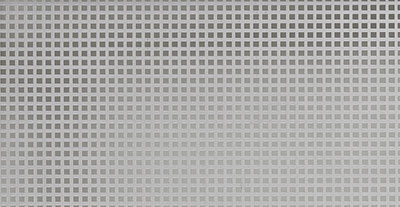

Perforated Aluminum Full View

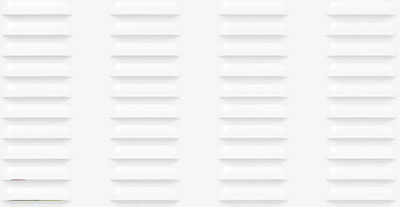

Commercial Window Louvered

Louvered Aluminum Full View

Specifications

2402 2412 2422
R-VALUE N/A 7.0 7.0
STEEL THICKNESS 24 ga 24 ga 24/25 ga
PANEL DESIGN Deep Ribbed Deep Ribbed Deep Ribbed
STEEL EMBOSSMENT Smooth Smooth Smooth
CONSTRUCTION LAYERS One Two Three
MAX STD WIDTH 30’2″ 30’2″ 30’2″
MAX STD HEIGHT 26’1″ 26’1″ 26’1″
DOOR THICKNESS 2″ (5.1cm) 2″ (5.1cm) 2″ (5.1cm)
