Rolling Slat Model 4100

Duty Rating Extra HD or Heavy-Duty
Insulation/R-Value 6.29
Layers 3
Warranty 2-Year Limited
Price $$$$

download brochure

Description

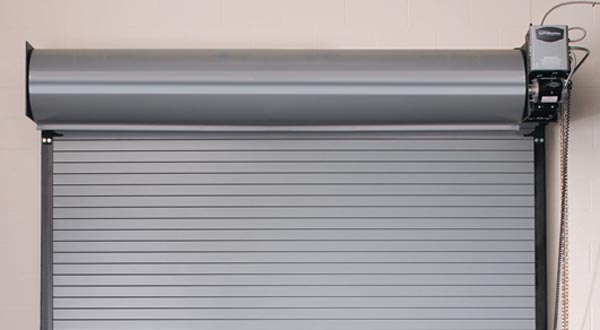

Rolling Slat Model 4100

In applications where climate control is a must, the 4100 Series provides maximum energy efficiency by using a polyurethane core that is foamed-in-place between the exterior and interior galvanized steel skins.

MAXIMUM R-VALUE
Our insulation has an R-value of 6.29 and is of the highest quality available with a flame spread not greater than 25 and smoke generation less than 50.

PRODUCT FLEXIBILITY
The Model 4100 is available in replaceable 22, 20, or 18 gauge insulated flat slats.

Finishes

  • White
  • Gray
  • Tan

Operators

Chain Hoist Commercial Garage Door Operator

Chain Hoist

Commercial Garage Door Electric Operator

Electric Operator

Slat Detail

Commercial Slat Windows

Optional Windows

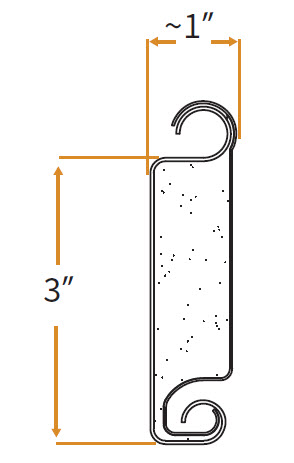

Slat Profile

Insulated Slat
Insulated Slat

Technical Features

Chain Hoist Commercial Garage Door Operator

Cast Iron Gears

Structural Steel Angle Guides

Structural Steel Angle Guides

Optional Plated Steel Bottom Bar Slide Lock

Commercial Garage Door Electric Operator

Optional Motor Operation

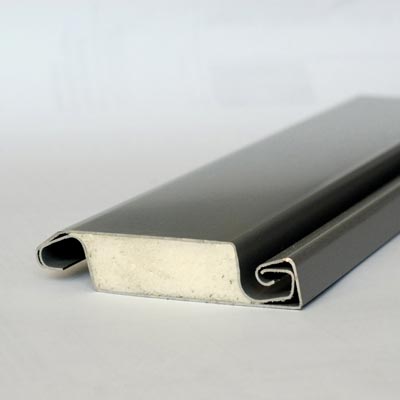

Foamed in Place Polyurethane Insulation

Foamed In Place Polyurethane Insulation

Specifications

STEEL SLAT GAUGE OPTIONS 22, 20 & 18 ga
MAX DOOR WIDTH 30’4″
MAX DOOR HEIGHT 24’4″
GUIDES Structural Steel Angle
WIND LOAD AVAILABLE Yes
