Rolling Sheet Model 5652

Duty Rating Heavy-Duty
Insulation/R-Value N/A
Layers 1
Warranty 25-Year
Price $$$

download brochure

Description

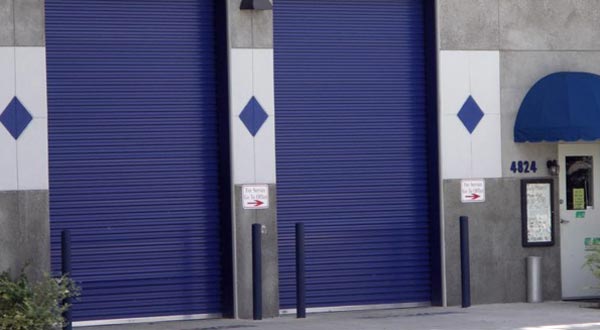

Rolling Sheet Model 5652

Manufactured to withstand high wind speeds, the Model 5652 can help protect property and products in storm prone areas. Nylon windlocks provide maximum protection without sacrificing ease of operation.

Wind Load Security
The Model 5652 has been designed and tested to meet the wind load requirements of the International Building Code and the Florida Building Code (FL14425)

Ease of Operation
The Model 5652 utilizes nylon windlocks that provide high wind load pressure protection while allowing for ease of operation.

Finishes

  • Galvalume
  • White
  • Silhouette
  • Polar Blue
  • Royal Blue
  • Forest Green
  • Evergreen
  • Fern Green
  • Dark Teal
  • Teal
  • Marine Green
  • Glossy White
  • Buckskin
  • Desert Tan
  • Continental Brown
  • Cedar Red
  • Valentine Red
  • Tangerine
  • Sunset Orange
  • Patriot Red
  • Maroon
  • Safety Yellow
  • French Oak
  • Bronze

Operators

Chain Hoist Model 5652 Series

Chain Hoist

Electric Operator Kit

Electric Operator Kit

Technical Features

Dual Galvanized Steel Slide Bolt Locks

Dual Galvanized
Steel Slide Bolt Locks

Galvanized Steel Guides

Galvanized Steel
Guides

Exterior Wear Strip

Exterior Wear
Strip

Heavy Duty Wall Mounting Bracket

12 Gauge Wall
Mounting Bracket

Specifications

SHEET STEEL THICKNESS 26 ga
MAX STANDARD WIDTH 18′-0″
MAX STANDARD HEIGHT 20′-0″
SPIRAL WOUND BARREL DIAMETER 12″
GUIDES 11 Ga
WIND LOAD AVAILABLE No
