Rolling Sheet Model 5601

Duty Rating Heavy-Duty
Insulation/R-Value N/A
Layers 1
Warranty 25-Year
Price $$$

download brochure

Description

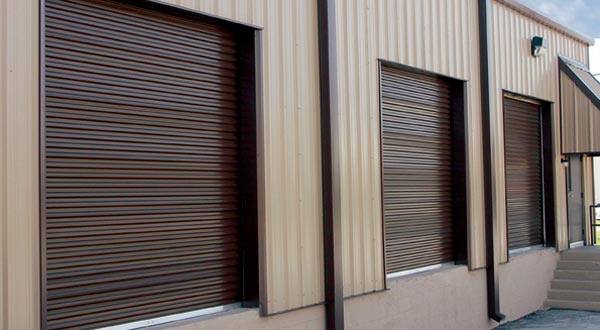

Rolling Sheet Model 5601

Engineered for heavy-duty applications, the Model 5601 is a great door for most docks or warehouses.

Industry Standard

Strong 26-Gauge corrugated steel with 22 standard colors, up to 4″ deep galvanized steel guides, and sizes up to 18′ x 18′ make the Model 5601 the perfect option for most commercial rolling sheet door requirements.

Strength Security

The 5601 features dual galvanized steel slide bolt locks, 12-gauge steel wall mounting brackets, steel bearing shaft support, 12″ drums enclosed in a full width galvanized steel barrel, and heavy-duty galvanized steel guides.

Finishes

  • Galvalume
  • White
  • Silhouette
  • Polar Blue
  • Royal Blue
  • Forest Green
  • Evergreen
  • Fern Green
  • Dark Teal
  • Teal
  • Marine Green
  • Glossy White
  • Buckskin
  • Desert Tan
  • Continental Brown
  • Cedar Red
  • Valentine Red
  • Tangerine
  • Sunset Orange
  • Patriot Red
  • Maroon
  • Safety Yellow
  • French Oak
  • Bronze

Operators

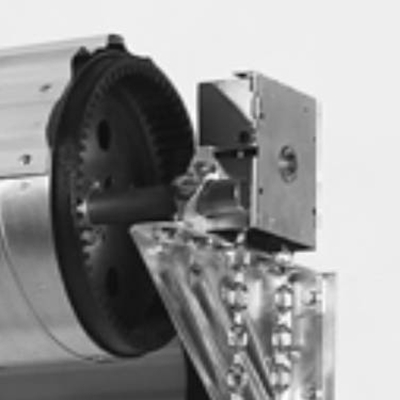

Chain Hoist

Chain Hoist

Electric Operator Kit

Electric Operator Kit

Technical Features

Dual Galvanized Steel Slide Bolt Locks

Dual Galvanized
Steel Slide Bolt Locks

Galvanized Steel Guides

Galvanized Steel
Guides

Exterior Wear Strip

Interior and Exterior Wear
Strip

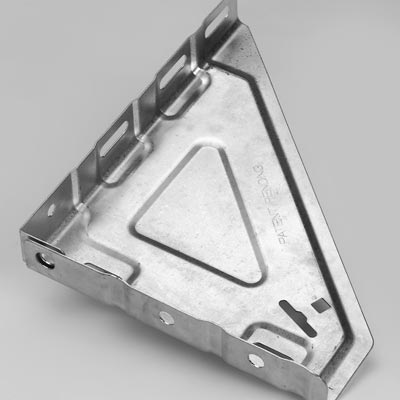

Heavy Duty Wall Mounting Bracket

12 Gauge Wall
Mounting Bracket

Specifications

SHEET STEEL THICKNESS 26 ga
MAX STANDARD WIDTH 18′-0″
MAX STANDARD HEIGHT 18′-0″
SPIRAL WOUND BARREL DIAMETER 12″
GUIDES 12 Ga
WIND LOAD AVAILABLE No
