LiftMaster Opener T

Call 901-521-6875 for pricing, availability, and install in the Mid-South.

Overview

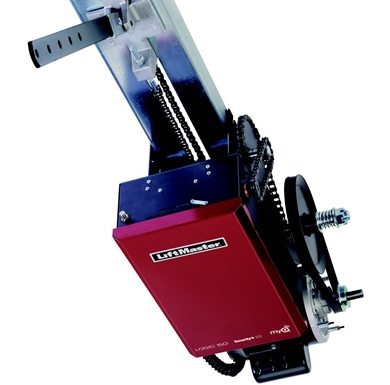

Industrial-duty Logic 5.0 trolley (T). Hangs from a ceiling rail and drives a standard-lift sectional — not a side-mount jackshaft and not a gearhead trolley (that is GT).

Pick this when…

• You need a trolley (ceiling rail) for standard-lift sectionals — not J / H (jackshaft) and not GT (gearhead trolley).
• Door speed 11–12 in/sec · output 140 RPM (install manual trolley specs).
• HP 1/3–1. Use the Model T door-area table — not the GH table.
• See the Logic 5.0 family sheet.

At a glance

• HP: 1/3, 1/2, 3/4, 1 · single- or three-phase
• Voltage: 115/230V 1PH · 208/230/460V 3PH · 575V discrete
• Duty: 25 cycles/hour, 80–90/day
• Door speed: 11–12 in/sec · output 140 RPM
• Brake: standard on 3/4 and 1 HP · optional 1/2 · not on 1/3

Logic 5.0 connectivity

• MyQ Technology — monitor and control the operator from a phone or computer.
• Email or push alerts for door status.
• MyQ Mobile App — free download, no annual activation fee.

Safety

• Security+ 2.0 rolling-code receiver — the door opens only for registered devices.
• UL 325: constant pressure to close, or a primary external monitored entrapment device.

• Emergency disconnect — frees the door arm for manual lift (trolley, not a hoist chain).

Standard features

• Dual voltage within phase; 575V is a discrete model.
• Seven wiring types including timer-to-close.
• Continuous-duty high-starting-torque motor; removable without moving limits.
• Adjustable friction clutch, mid-stop, maximum run timer, delay-on-reverse.
• 3-button station with Maintenance Alert System (MAS).

Specs

Documents

Logic 5.0 installation manual (PDF)
Logic 5.0 user guide (PDF)
