Medium-Duty Gear-Reduced Jackshaft Operator for Rolling Grilles and Shutters

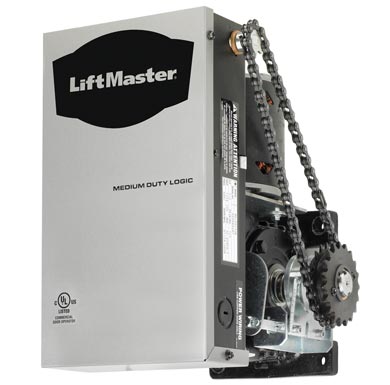

Model MGJ is a Medium-Duty Logic gear-reduced jackshaft operator for rolling grilles and shutters. It features a compact design, a floor level disconnect, a high-starting torque motor and a heavy-duty wormgear reducer.
- UL325-2010 compliant Medium-Duty Logic programmable integrated circuit board
- Built-in 3-channel, 315MHz radio receiver accepts up to 20 Chamberlain® Security+® or unlimited DIP switch remotes.
- 3-button remotes can be programmed for OPEN/CLOSE/STOP operation
- Programmable C2 or B2 wiring options (B2 requires CPS-U, CPS-UN4, or CPS-EI)
- Integrated Timer-to-Close (TTC) allows programming from 5 to 60 seconds in 5-second increments. Allows for timed automatic door closure after the door reaches the full open position (Requires monitored safety devices, with CPS-U, CPS-UN4, or CPS-EI)
- Integrated 90-second maximum run timer
- UL325-2010 Monitored Entrapment Capability
- Monitored protection against transient overvoltage conditions
- 3-button control station included
Motor: Powerful 1/2 HP, single phase motor with instant reverse and internal automatic reset thermal overload. Removable without affecting limit switch settings.
Wiring Type: All operators are factory preset to C2 wiring providing momentary contact to open and stop with constant contact to close. Momentary contact to close (B2 wiring) can be easily set, but requires the presence of either CPS-U, CPS-UN4, or CPS-EI safety devices. The operator is pre-wired to accept a sensing device, photoelectric control, radio controls and most types of access control equipment.
Operator/Motor Control: Solid-state Medium-Duty circuit board.
Control Circuit: 24V NEC Class 2.
Floor Level Disconnect: Floor level disconnect provides emergency manual operation.
Drive Reduction: Heavy-duty wormgear-in-oil-bath speed reducer.
Push Button Station: 3-button station for OPEN/CLOSE/STOP functions is standard for all operators. Controls with 1, 2 and 3 buttons are available.
Construction: NEMA 1 type electrical box with baked-on powder coat finish. Easily field converted for right or left mounting.
CONTROL ACCESSORIES AND OPTIONS
Primary Monitored Entrapment Protection: The presence of primary entrapment protection is required for all modes and features beyond basic constant-pressure-to-close performance. Primary entrapment protection devices are monitored continuously to insure safe operation of the door and limit door operator functionality should an obstruction be detected or in the event of device failure. LiftMaster Monitored Entrapment Protection devices, CPS-U, CPS-UN4 and CPS-EI, are designed to work in conjunction with LiftMaster commercial door operators to provide enhanced door safety and a broad range of modes and features to end users. Either monitored photo-sensor or monitored 4-wire sensing edge (in conjunction with the CPS-EI Edge Interface) protection may be selected, but one must be detected by the LiftMaster Logic 4.0 or Medium-Duty Logic circuit board in order to unlock full functionality.
Radio Control: Universal transmitters and receivers are available to signal the operator to open and/or close.
Emergency Egress Device: Attractive faceplate mounts flush to the wall and contains handle to disconnect operator from a grille, thereby allowing the grille to be opened manually or by spring tension.
Rolling Door Interlock Switch: Interlock switch disables the operator control circuit when a manual door lock is engaged preventing damage to the door and operator.
