Description
Call 901-521-6875 for pricing, availability, and install in the Mid-South.
Overview

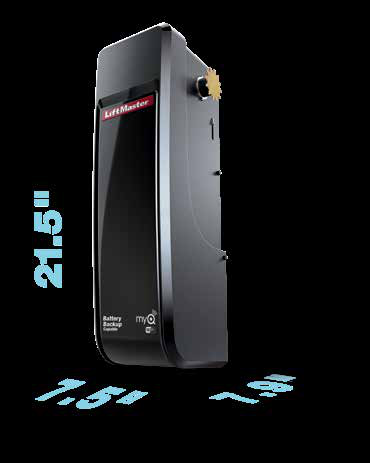

Light-duty wall-mount jackshaft (LJ8950W) for smaller, lighter rolling doors and grilles. 12V DC motor, built-in Wi-Fi, MyQ. Not LJ8900W (sectional) and not Logic 5.0 J.
Pick this when…
- The door is a small rolling door or grille — dock, self-storage, counter shutter — not a sectional (that is LJ8900W).
- Max 14 ft high or 18 ft wide · 180 sq ft · 850 lb (LJ8950W product guide).
- See the family comparison chart.
At a glance
- Motor: 12V DC · 120V AC 60 Hz · 1.5 A · 6 ft cord
- Duty: max 10 cycles/hour · fewer than 25/day
- Speed: 8.5 in/sec up · 7.6 in/sec down
- Drive: 63:1 · #48 live and dead-shaft sprockets included
- MyQ · built-in Wi-Fi · battery-backup capable
Specs
| Mount | Wall jackshaft · rolling doors and grilles |
|---|---|
| Max door | 14 ft high or 18 ft wide · 180 sq ft · 850 lb |
| Headroom | 3 in from center of torsion bar |
| Duty | 10/hour · under 25/day |
| Power | 120V AC · 1.5 A · UL listed |
| Speed | 8.5 in/sec up · 7.6 in/sec down |
| Warranty | 2 years |
